| SF-1 | 千层锁 表面: 镀锌 / 镀镍 钥匙类别: 常规钥匙 包装: 盒子 / 双泡壳 |
|||||||

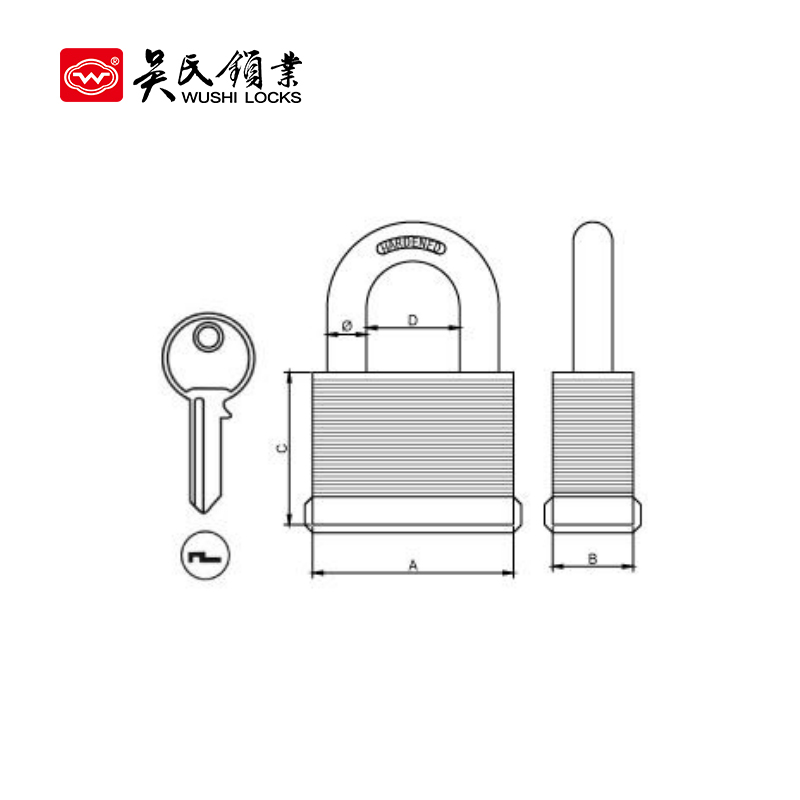

| 货号 | 规格 | A | B | C | Φ | D | E | |
| SF130 | 30mm | 31 | 17.5 | 26.4 | 5 | 14.5 | 16.5 | |
| SF140 | 40mm | 40 | 22.5 | 33 | 6.1 | 20.4 | 23.5 | |
| SF145 | 45mm | 45 | 23.5 | 33 | 7 | 21 | 24 | |
| SF150 | 50mm | 50 | 26 | 37.5 | 8.8 | 24.2 | 27 | |
| SF165 | 65mm | 65 | 31 | 46.5 | 11 | 30 | 36.5 | |
| SF170 | 70mm | 70 | 35 | 46.5 | 12 | 34 | 40.5 | |
